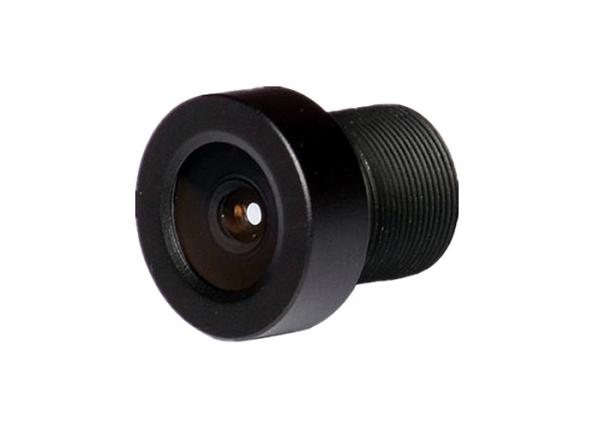

1/4" 2.27mm Megapixel M7x0.35 mount 140degree Wide Angle Lens for OV9712, Automobile data recorder lens

Name: 14quot 227mm Megapixel M7x035 mount 140degree Wide Angle Lens for OV9712 Automobile data recorder lens
Brand: CCOM LENS
Price: 1 USD

Wholesale 1/4" 2.27mm Megapixel M7x0.35 mount 140degree Wide Angle Lens for OV9712, Automobile data recorder lens from china suppliers

Model Number : 140227MPF-M7

Place of Origin : China

MOQ : 100 pcs

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : Samples available

Delivery Time : 2-7 work days

Packaging Details : Standard

Brand Name : CCOM LENS

Camera Lens : CCTV Video Lens

Optical Lens : M7 mount wide-angle Lens

TV Lens : 1/4" sensor lens

Material : 5G+IR

Contact Now

1/4" 2.27mm F2.4 Megapixel M7*0.35 mount 142degree wide angle lens for Automobile data recorder, Megapixel Automobile data recorder wide angle lens, lens for 1/4" OV9712&1/5"&1/6" sensors, able to match OV5640

Model 140227MPF-M7
IMAGE FORMAT 1/4"
SENSOR SIZE FOR OV9712
MAX IMAGE CIRCLE Ø 4.75mm
FOCAL LENGTH 2.27mm
F.O.V (D*H*V) 142°*106°*62°
TV DISTORTION H=-37%, V=-10%
APERTURE F2.4
RESOLUTION MP
MOUNT M7XP0.35
IRIS Fixed
B.F.L. 4.19mm
F.B.L. 3.00mm
DIMENSION Φ10×10mm
LENS COMPOMENT 5G+IR

Tips:

- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- M8/M12 mount is optional.

1/4" 2.27mm Megapixel M7x0.35 mount 140degree Wide Angle Lens for OV9712, Automobile data recorder lens Images
